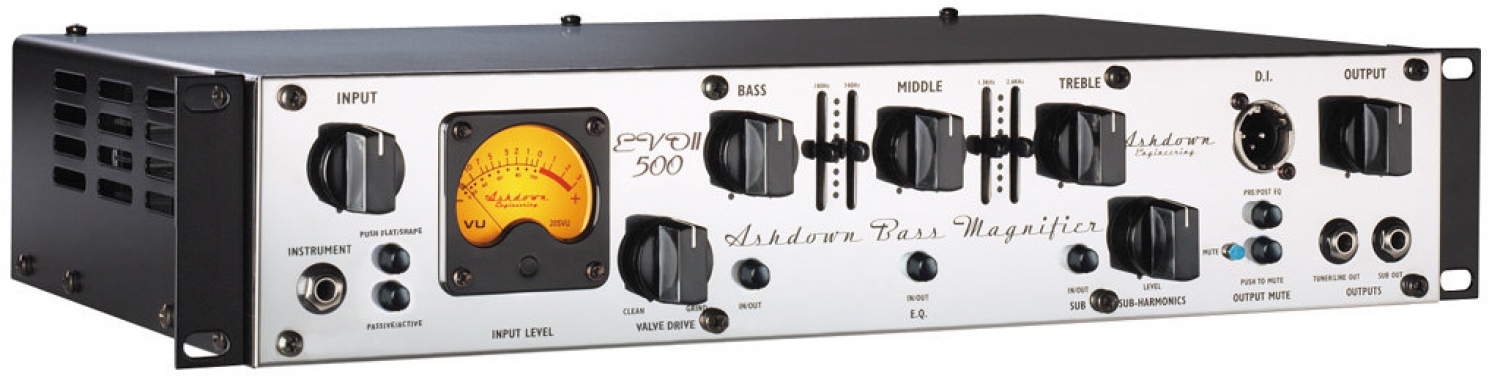

For those requiring an integrated solution, the ABM 500RC EVO II is a rack-mounting version of the standard ABM 500 EVO II Head, with a stunning, polished chrome panel. Three straightforward rotary tone controls provide 20dB of cut and boost at 60Hz, 660Hz and 5kHz, and are supplemented by two pairs of additional sliders giving 15dB cut and boost at 180Hz, 340Hz, 1.3kHz and 2.6kHz. The EQ can be switched in/out, and flat/shaped by footswitch, enabling players to go from a flat fretless sound to a boosted sound via a favorite EQ setting.
A single input is switchable for passive and active instruments with a blend of solid state and dual triode tube preamps stages which can be preset and selected by footswitch, providing access to a massive range of clean, warm and overdriven tones. Also footswitchable is the mighty Ashdown sub-harmonic generator which precisely tracks the main signal and reproduces it an octave lower. A sub-harmonic level control enables the player to add just the right amount of low-end reinforcement - everything from a subtle, thickening of the sound to unbridled, bone crushing tone.
The ABM 500RC EVO II features a front-panel mounted balanced DI out with pre or post EQ switching, a sub-bass output, a tuner output, an FX loop and a line input for the connection of an external sampler or sound source. Output muting cuts the signal from the DI output but leaves the tuner output 'live', allowing the player to tune up in silence. A new upgraded power section has faster transient attack, more headroom and even less noise.
| 전원출력 | 575 watts |
|---|---|
| 하이 입력 | 3.9m Ohms, input range 150mV - 20mV p-p |
| 로우 입력 | 10k Ohms, input range 300mV - 40V p-p |
| 스테레오 라인 입력 | 22k Ohms, input level 0dBu nominal |
| 이펙트 리턴 Impedance | 22k Ohms, input level 0dBu Nominal |
| 튜너 출력 | 22k Ohms, level 0dBu nominal |
| 이펙트 샌드 Impedance | 22k Ohms, level 0dBu nominal |
| DI 출력 | 600 Ohms balanced, level 0dBu nominal |
| 스피커 출력 | Minimum impedance 4 Ohms |
| Shape(Push Flat) | +8dB @ 50Hz & 4kHz, -8dB @ 400Hz, filter slope - 6dB/octave |
| Bass | 15dB @ 45Hz |
| Middle | 15dB @ 660Hz |
| Treble | 15dB @ 7kHz shelving |
| Slider 1 | 15dB @ 110Hz |
| Slider 2 | 15dB @ 340Hz |
| Slider 3 | 15dB @ 1.3kHz |
| Slider 4 | 15dB @ 2.6kHz |
| Frequency Response | -3dB at 17Hz and 30kHz |
| Power Requirements | 230 / 115V |
| H x W x D (mm) | 90 x 483 x 267 |
| 무게 (kg) | 14kg |
제품정보공시
| 품명 및 모델명 | ABM500RCEVOII |
| 크기 (너비, 깊이, 높이) | 90 x 483 x 267 mm |
| 색상 | 크롬 |
| 재질 | 금속 |
| 제품 구성 | 본체 , 전원케이블 |
| 동일모델의 출시년월 (최초수입년월) |
2010년 1월 |
| 수입원 | ㈜코스모스악기 |
| 제조국 | CHINA |
| 상품별 세부 사양 | 제품상세내 기재 |
| 품질보증기준 | 보증기간 1년 |
| A/S 책임자와 전화번호 | 02-3486-0033 코스모스악기 AS센터 |
