Keyboard |
| | 61 keys velocity sensitive with aftertouch |
Sound Source |
Max polyphony | | 128 |
|
Tones | | 1100 panel tones, 54 Drums kits, dedicated EQ for each Oscillator (on Realtime/Style/Song parts) and for each drum instrument on Styles and Songs |
|
SRX Expansion Board slots | | 2 (for SRX series and SR-G01) |
|
Multitimbral parts | | 32 |
|
Realtime Effect Processors | | REVERB section: 12 Reverb; CHORUS section: 6 Chorus;MFX section: 84 Multi-FX;MASTERING TOOL section: Parametric EQ, Multi-Band Compressor;HARMONIC BAR section: Rotary, Vibrato and Overdrive; EXTERNAL AUDIO INPUT: 84 effects; MIC INPUT section: Noise Gate, Compressor, 9 Reverb, 9 Delay;VOCAL HARMONIST section: 9 Reverb, 9 Delay, 9 Chorus |
|
Style/Song Effect Processors | | REVERB section: 8 Reverb; CHORUS section: 8 Chorus; 3 x MFX section: 84 Multi-FX; MASTERING TOOL section: Parametric EQ, Multi-Band Compressor |
|
Compatibility | | GM2/ GS/ XG Lite |
Styles |
Preset styles | | more than 350 styles on 12 families |
|
Style Variations | | 4 Main / 4 Intro / 4 Ending / 6 Fill In / Break Mute on ASSIGN SW |
|
Sync Start / Sync Stop | | Yes |
|
User Style Composer | | 8 Tracks with Micro editing / Piano Roll editing / Guitar Mode Programming / SRX tones selection |
|
Direct Media Link | | Yes |
|
One Touch Setting | | 4 for each Style with customization |
Cover |
| | For Songs and Styles, 30 ALL, 18 Drum, 24 Bass |
Makeup Tools easy editing |
| | For Songs and Styles with SRX/SR-G01 tones selection;Makeup Tools Freeze Data function;Independent 3-band EQ (with Q) management for each instrument (including each drum instrument);3 dedicated MFX for each Style/Song. |
Panel Controls |
Multi-function sliders | | 9 |
|
Rotary Encoder with push switch | | Yes |
|
Cursor | | Inc, Dec, Up, Down, Right, Left |
|
Pitch Bender and Modulation | | Yes |
|
D Beam | | Yes, (4 modes) |
|
Knobs | | 3 dedicated knobs for:Master VolumeKeyboard / Accomp balanceExternal Source Volume |
|
Keyboard Part / Part Assign Switches | | Upper1, Upper2, Upper3, Lower1, Lower2, Manual Bass |
|

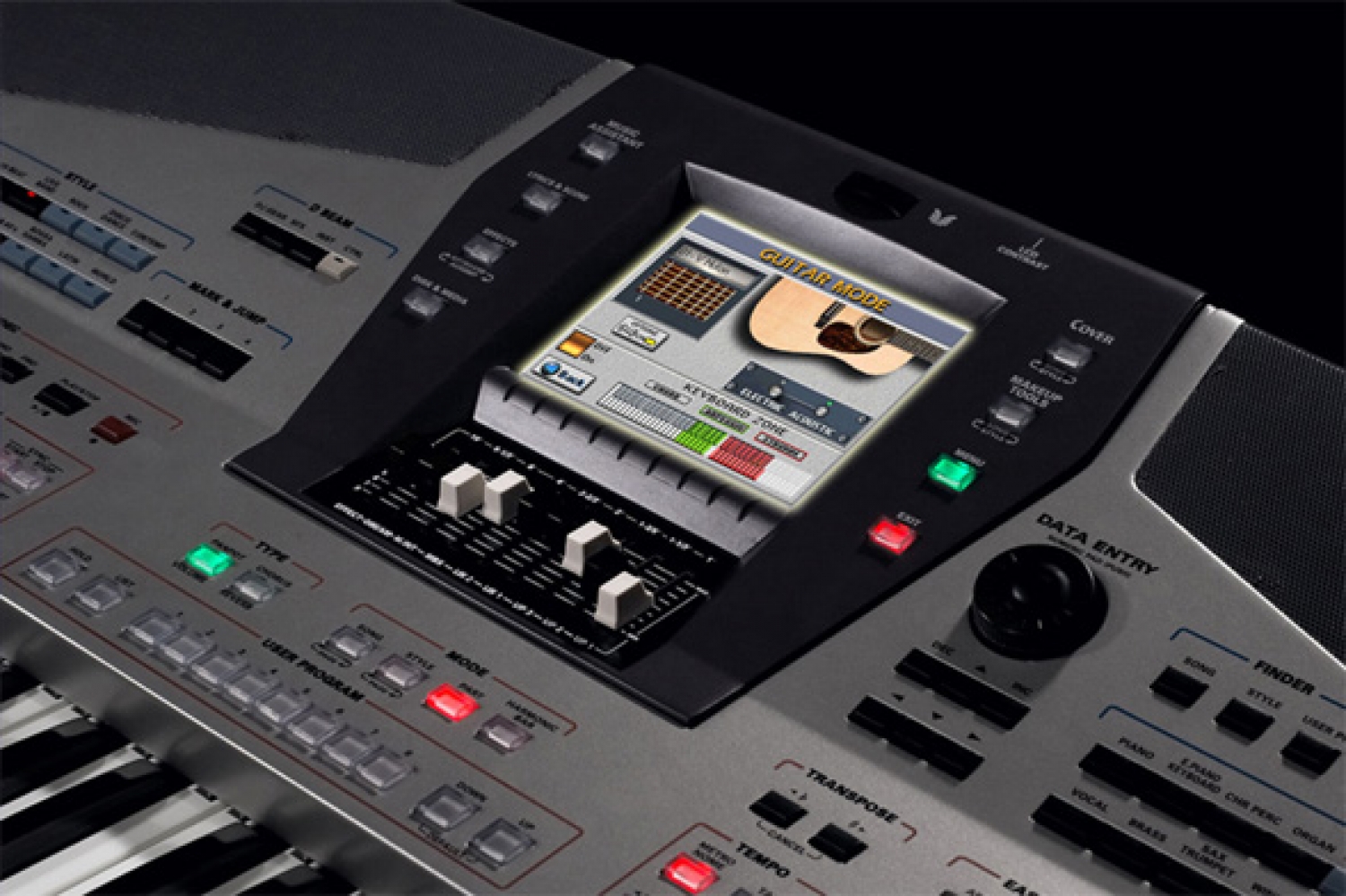

Display | | Color Touchscreen with selectable beep |
Player / Recorder |
Mark / Jump | | Yes, 4 locations for each Song |
|
Sequencer | | 16-Track Sequencer, with Micro Event List / Piano Roll editing, Vocal Harmonist control track, Guitar Mode programming, SRX Tones selection, SMF to Style Converter |
|
DigiScore | | Yes |
|
Lyrics Display | | Yes, with automatic Chord Extractor and Text Import/Export possibility |
|
Viewer | | Yes, for .txt and .bmp files |
Harmonic Bar |
| | Virtual ToneWheel technology9 bars: 16’, 5-1/3’, 8’, 4’, 2-2/3’, 2’, 1-3/5’, 1-1/3’, 1’ for Upper1 / Lower1;2 bars: 16’, 8’ for Manual bass. |
|
Percussion | | On, Off, 2-2/3’, 4’, Slow, Fast |
|
Leakage level | | Min - Max |
|
Harmonic Bar effects | | Rotary, Vibrato, Overdrive |
|
Registrations | | 8 sets |
Vocal Harmonist |
Mode | | 4 Modes: Talk, Voice-FX, Auto Pitch, Singer |
|
Programmable Harmony | | 3 Types: 30 Small, 30 Ensemble, 24 Vocoder |
|
Control possibility | | Realtime, on 16-Track Sequencer, via MIDI IN |
Music Assistant / User Program registrations |
Music Assistant | | unlimited number (approx. 580 as preloaded factory data), programmable |
|
User Program | | unlimited number, 144 User Program links on each set |
Data Storage |
FDD | | 3.5” 2HD/2DD |
|
Internal SSD (Solid State Disk) | | 62,4MB (approx. 35,3MB as preloaded factory data) |
|
PC Card Slot | | 1 PCMCIA slot for: Microdrive (1.0-inch hard disk drive)*,Compact Flash*, Memory Stick*,SmartMedia**using Card adaptor*the E-80 system manages up to 4 GBytes of the above storage Media |
|
Type of files managed | | Style, Song (.mid /.kar files), User Program, User Program set, MIDI Set, Play List, File.txt, File.bmp |
Other functions |
Guitar Mode | | Yes, for Acoustic and Electric Guitars, with Stereo Doubling function |
|
Finder | | Song, Style, User Program |
|
Easy Setting | | Arranger, Organ, Guitar, Piano |
|
Chord Alteration System | | Adaptive Chord Voicing |
|
Melody Intelligent | | Yes, 18 Types, Melody Intelligent 2nd Tone customization |
|
New dynamic Split function | | Yes, two modes |
|
Tap Tempo | | Yes |
|
Transpose with Singer Key Adapter | | Yes, -6 ~ +5 |
|
Song Chord Extractor | | Yes |
|
Fade IN/OUT | | Yes, programmable |
|
Assignable SW | | Yes, 2 programmable with Break Mute selection |
|
V-LINK | | Yes |
|
Updating system | | Yes, on Flash |
Connectors |
USB / MIDI | | 1 USB socket for File transferMIDI IN, OUT, THRU sockets |
|
Audio Output / Audio Input | | Audio Output: Main (L/mono, R)? Metronome Output; Audio Input: External Audio Input (L, R), Vocal Harmonist Input (XLR / TRS, Phone balanced / unbalanced) |
|
Jacks | | 1 x Hold Pedal, 1 x Assignable Switch, 1 x Expression Pedal, 1 x FC-7 Control Pedal |
|
Video Output | | Yes, for Lyrics and Chords (2 types),Text and BMP files viewer |
|
Phones | | 2 |
Internal Amplification |
| | Speakers: 2 x 13 cm (woofer), 2 x 6,6 cm (tweeter)Rated Power Output: 2 x 35 W, 2 x 12 W (with Bass Reflex system)Dedicated speaker off switch: yes |
Others |
| | Owner’s Manual, Power Cord, Music Rest, bundled CD-ROM (it contains E-80 backup data image, USB-MIDI driver (for Mac/PC), DATABASE MANAGER software) |
 |
Size and Weight |
Width | | 1,176 mm | 46-5/16 inches |
|
Depth | | 489 mm | 19-1/4 inches |
|
Height | | 198 mm | 7-13/16 inches |
|
Weight | | 22.5 kg | 49 lbs. 10 oz. |
|
*The specifications are subject to change without notice. |
