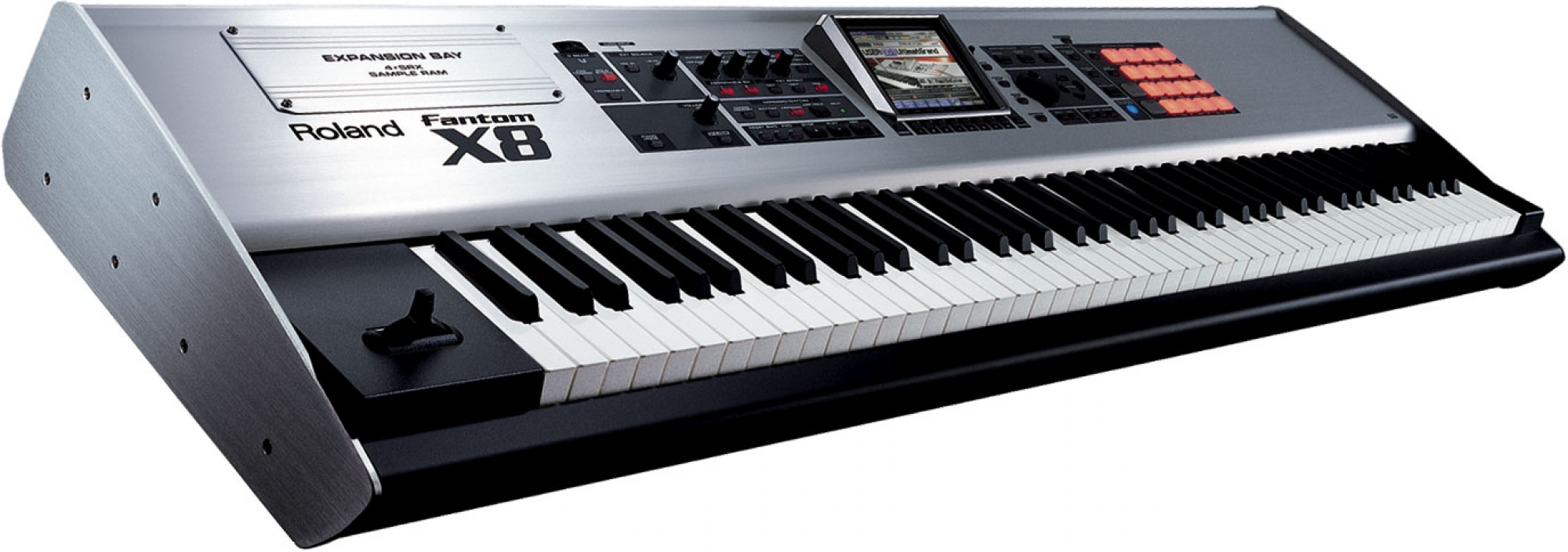

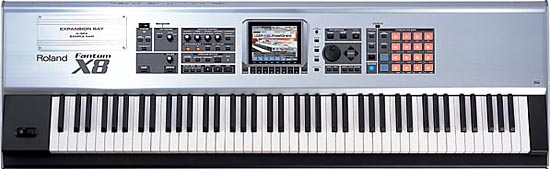

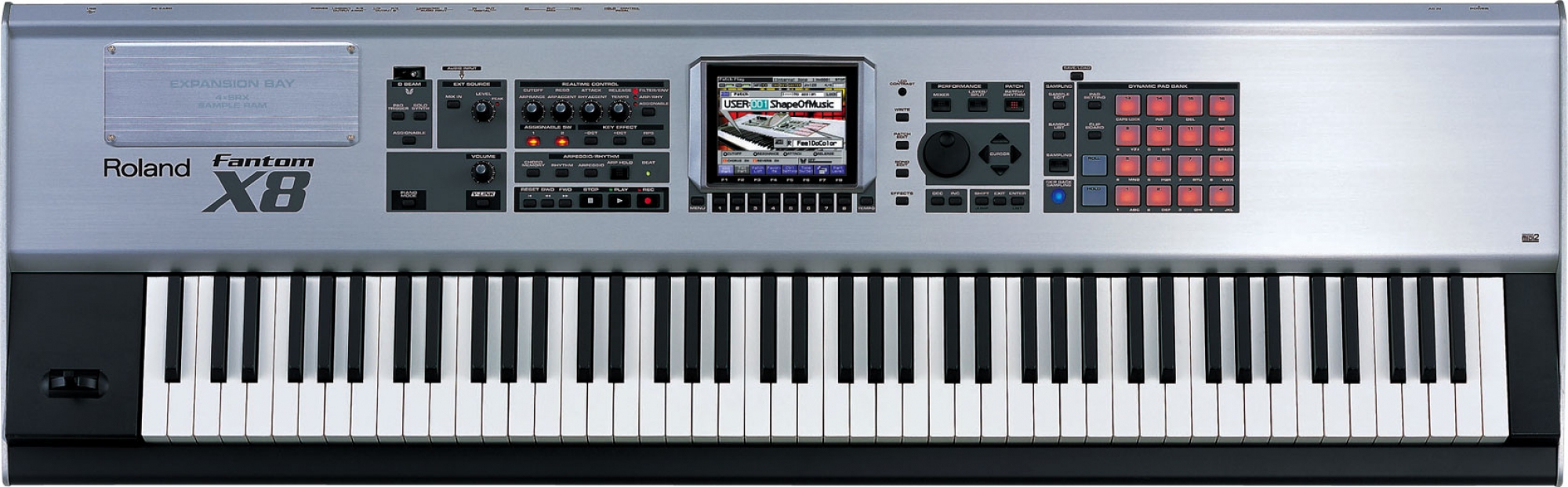

Fantom-X8 V.2
 |
 |
   |
|
 | ||||
Fantom-X8 Audio Track Expanded: Synthesizer (Conforms to General MIDI 2 System) |
||||
Keyboard |
 |
88 keys (Progressive Hammer action Mechanism and channel aftertouch) |
||
 |
||||
Maximum Polyphony |
|
128 voices (shared with the sampling section) |
||
|
||||
Parts |
|
Parts |
||
|
||||
Standard Wave Memory |
|
128 M bytes (16-bit linear equivalent) |
||
|
||||
Standard Waveforms |
|
1,480 |
||
|
||||
Preset Memory |
|
Patches: 1,152+ 256 (GM2) |
||
|
||||
User Memory |
|
Patches: 256 |
||
|
||||
Card Memory (PC card) |
|
Patches: 256 |
||
|
||||
Effects |
|
Multi-Effects: 3 systems, 78 types |
||
|
||||
Sampling Data Format |
|
16-bit linear (File Type: .WAV/.AIFF) |
||
|
||||
Sampling Frequency |
|
44.1 kHz (fixed) |
||
|
||||
Maximum Sampling Time |
|
Standard (32 MB) |
||
|
||||
Number of Samples |
|
User memory: 2,000 |
||
|
||||
Sequencer Tracks |
|
Phrase tracks (16 MIDI channels per track): 16 |
||
|
||||
Sequencer Resolution |
|
480 TPQN |
||
|
||||
Sequencer Tempo |
|
5 - 300 |
||
|
||||
Sequencer Note Capacity |
|
approx. 400,000 notes |
||
|
||||
Sequencer Song Length |
|
9,998 measures |
||
|
||||
Sequencer Recording Method |
|
Realtime recording, Step recording |
||
|
||||
Arpeggiator |
|
Preset: 128 |
||
|
||||
Rhythm Pattern |
|
Preset: 256 (32 groups) |
||
|
||||
Chord Memory |
|
Preset: 64 |
||
|
||||
Display |
|
Graphic 320 x 240 dots backlit LCD (Color) |
||
|
||||
Dynamic Pads |
|
16 pads, Velocity and Aftertouch sensitive |
||
|
||||
Controllers |
|
Pitch Bend/Modulation Lever |
||
|
||||

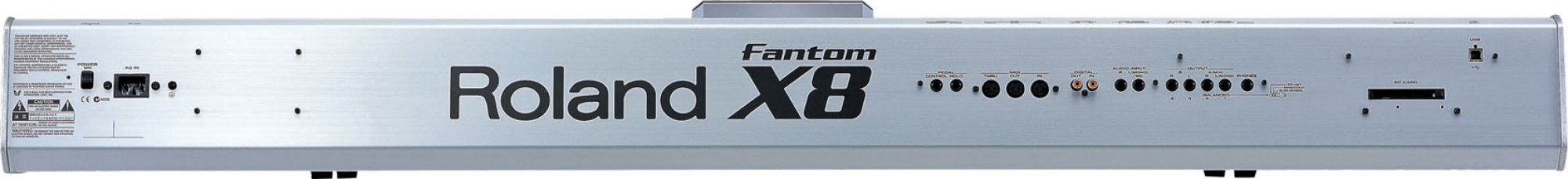

Connectors |
|
Headphones Jack |
||
|
||||
Expansion Slots |
|
Expansion of waveforms and patchs for the internal sound generator |
||
|
||||
External Storage Device |
|
PC card: 1 slot (supports SmartMedia and CompactFlash using a PC card adapter) |
||
|
||||
Power Supply |
|
AC 117 V, AC 230 V, AC 240 V (50/60 Hz) |
||
|
||||
Power Consumption |
|
17W |
||
|
||||
Accessories |
|
Handbook |
||
|
||||
Options |
|
Wave Expansion Board: SRX Series |
||
|
||||
Size and Weight ( Dimensions ) |
||||
Width |
|
1,408 mm |
55-7/16 inches |
|
|
||||
Depth |
|
455 mm |
17-15/16 inches |
|
|
||||
Height |
|
165 mm |
6-1/2 inches |
|
|
||||
Weight |
|
29.5 kg |
65 lbs. 1 oz. |
|
|
||||
*The specifications are subject to change without notice. |
||||
