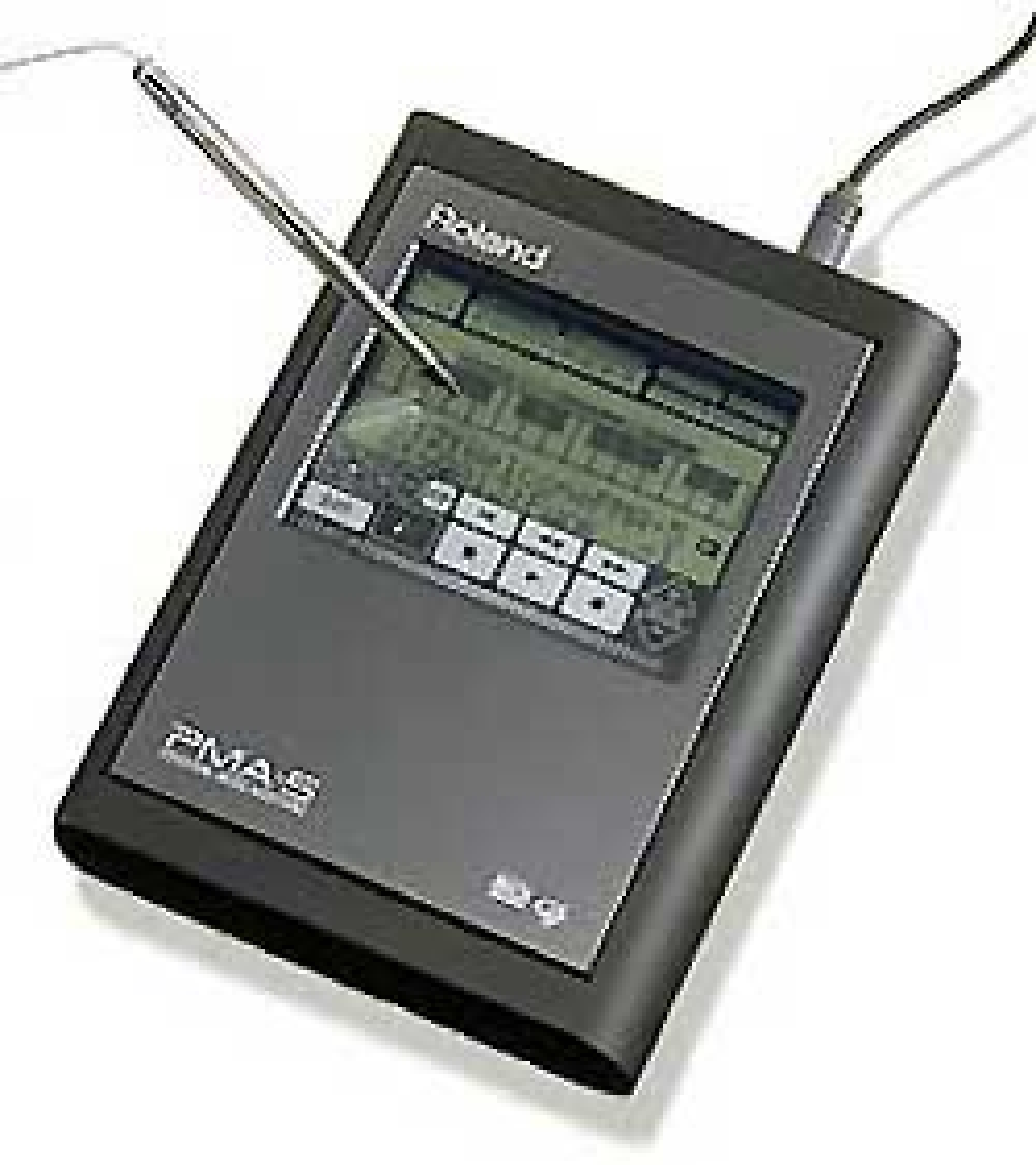

Model. PMA-5

Personal Music Assistant

The perfect compositional or backing tool for anyone, the new PMA-5 is a completely new concept in personal backing machines. The palm-held, electronic organizer style PMA-5 includes a high quality 306 tone GM/GS sound source, an eight-track sequencer and a powerful intelligent arranger with 600 patterns and variations. A custom LCD touch-panel (touch pen or finger) user interface makes operation simple and intuitive.

SPEC

*Max. Polyphony 28 voices *Instruments 306 tones, 16 drum sets *Effects Reverb (8 types),
Chorus (8 types) *Tracks Sequence=4, Style=4, Control=2, *Style Data Preset Styles=600
(100 X 6 divisions), User Styles=200(Max), Style Length=1 to 8 measures, Chord Type= 26 Types
*Song Data Storage Capacity Songs=20 (Max), Note capacity=approx, 21,000 notes (max)
Song Length= 1 to 999 measures *Resolution 96 ticks per quarter note *Temp 25 to 250
*Time Signatures 1/4 to 7/4, 1/8, to 12/8, 1/16, to 15/16 *Display Custom Touch Screen
*Connectors Headphone / Line out, MIDI (In.Out), Start/Stop (miniature phone type),
Computer Terminal, Computer Swich, DC in * Power Supply DC 9V Dry Batteries X 6,
AC Adaptor *Current Draw 200mA *Dimensions 123 (W) X 169 (D) X 34 (H) mm
*Weight (incl, batteries and cover) 610 g (1 lb. 6. oz.)
